Unmatched Energy Storage and Efficiency

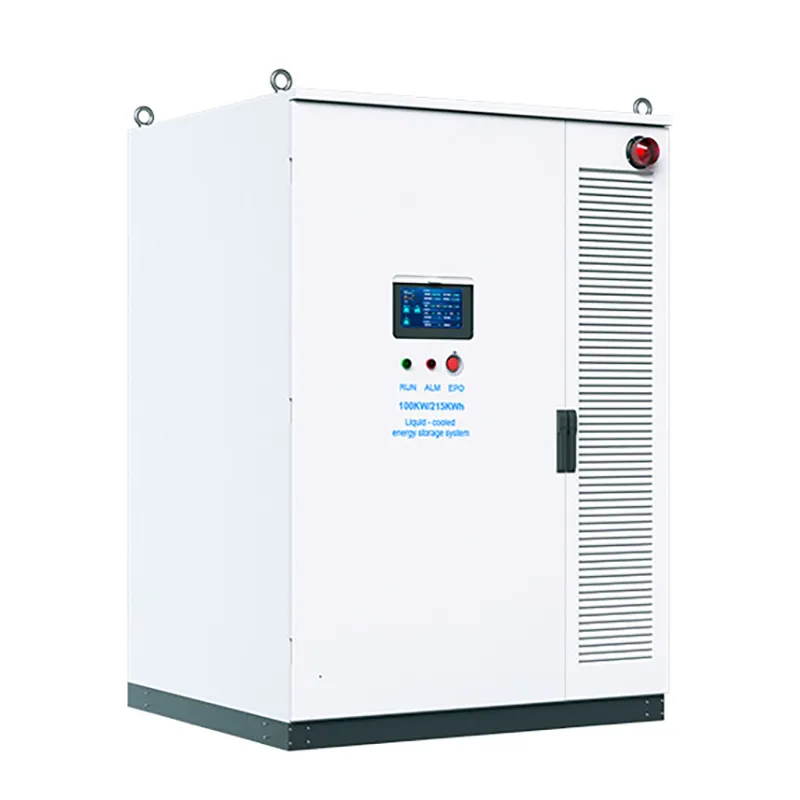

The 100kW 215kWh energy storage cabinet is designed to revolutionize your energy management experience. Featuring advanced 280Ah battery cells with a depth-of-discharge (DOD) of 95%, this solution offers exceptional reliability and performance. With a liquid cooling ESS and a PV hybrid inverter, it meets the demands of modern energy systems while optimizing power delivery for both residential and commercial applications.
Cutting-Edge Technology for Enhanced Performance
This energy storage cabinet is equipped with high-capacity 280Ah battery cells, ensuring long-lasting and consistent energy storage. The DOD95% technology maximizes battery usage, extending its lifespan and efficiency. Liquid cooling ESS technology guarantees temperature stability, protecting the system from overheating and maintaining peak functionality. Paired with the PV hybrid inverter, the cabinet seamlessly integrates renewable energy sources, providing an eco-conscious and cost-effective solution.
Versatile Applications and User-Friendly Design
Whether utilized in residential setups, businesses, or off-grid systems, this 100kW energy storage cabinet can transform energy consumption patterns. Its modular construction allows for straightforward installation and maintenance, minimizing downtime. The system’s integration with PV hybrid inverters makes renewable energy utilization effortless, enhancing sustainability while reducing energy costs. Built with durability and efficiency in mind, this energy storage solution stands as the cornerstone of dependable energy infrastructure.
| Model No. | JS-Y215 |
| Grid Side (Grid-connected/Off-grid) | |
| Rated Grid Voltage | AC380V(-15%~+10%) |
| Rated Output Frequency | 50Hz/60Hz(士5Hz) |
| AC Connection Method | Three-phase four-wire (with neutral line N) |
| Isolation Method | Isolation-free Grid Connection |
| Maximum Charge/Discharge Power | 100KW/AC (continuous), 120KW (1 min), 130KW (1 s) |
| Charge/Discharge Switching Time | Less than 10ms |
| Battery End Parameters | |
| Battery Type | Lithium Ion Battery (Lithium Iron Phosphate) |
| Rated Energy | 215KWh |
| Maximum Charge/Discharge Energy | DOD95% |
| Maximum Charge/Discharge Current | 220A |
| Rated Charge/Discharge Power | 100KW |
| Cycle Times | 6000 (100% charge and discharge, decay to 75%, 25°C) |
| System Efficiency/Function/Safety | |
| Maximum System Efficiency | 90% (comprehensive actual operating efficiency) |
| Maximum Charging Efficiency | ≥96% |
| Maximum Discharging Efficiency | ≥96% |
| Main System Functions | Anti-reverse flow protection, high and low voltage ride-through, grid-connected/islanding operation, islanding protection, load tracking, demand control, remote scheduling and monitoring OTA |
| System Safety Protection | Over-voltage, under-voltage, short circuit, overload, overcurrent, over-temperature, lightning protection, leakage, insulation detection, cabinet + PACK level immersion fire protection design, etc. |
| Overall Technical Parameters | |
| Weight | 1400x1250x2000mm |
| Maximum Charging Efficiency | <2500kg |
| Operating Altitude | 3000m (100% AC output) |
| Cooling Method | Second-generation liquid cooling or immersion liquid cooling |
| Protection Level | IP65 |
