Powerful Energy Storage Solution for Modern Needs

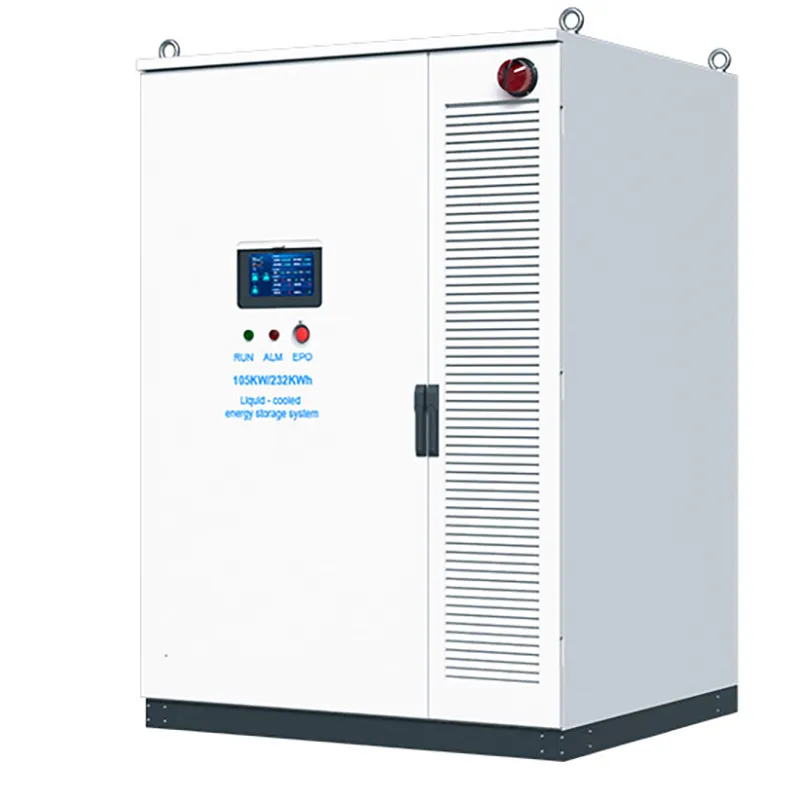

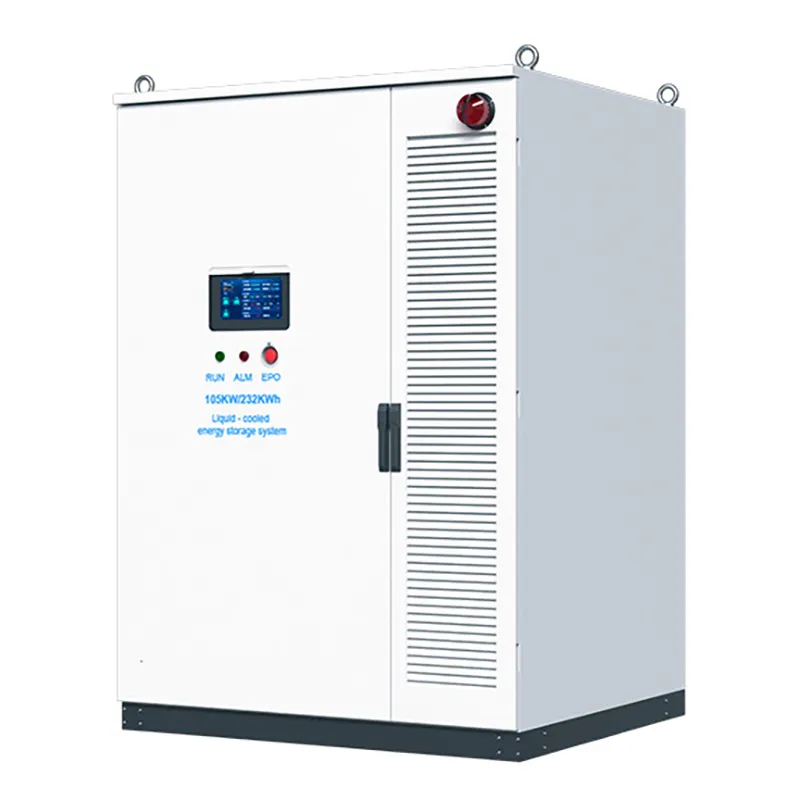

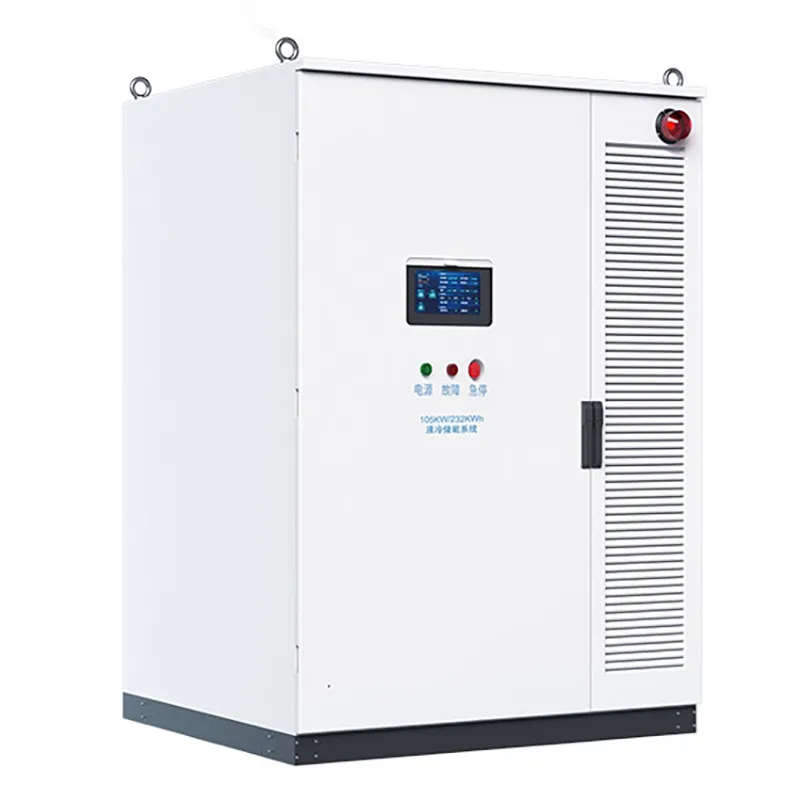

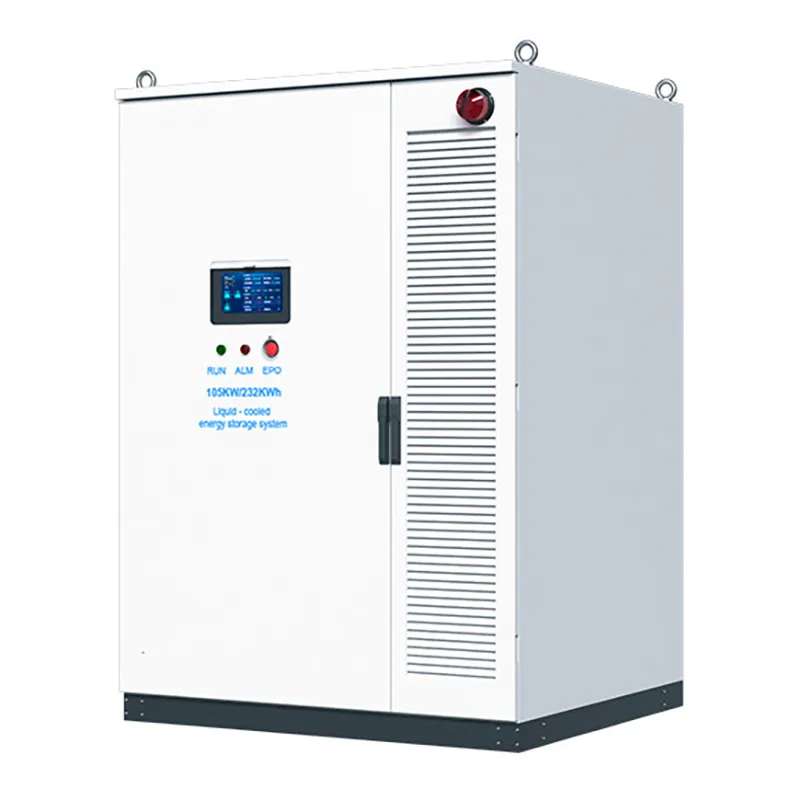

Introducing the state-of-the-art 105kW 232kWh solar energy storage cabinet. Designed to deliver reliable and long-lasting power, this advanced system integrates 280Ah battery cells with cutting-edge liquid cooling technology to maintain optimal performance under demanding conditions. Whether you’re aiming for sustainability or energy independence, this cabinet offers the perfect blend of innovation and efficiency.
Seamless Integration with PV Hybrid Inverter
One of the standout features of this solar energy storage system is its compatibility with a PV hybrid inverter. The hybrid design enables seamless connection with photovoltaic (solar) systems, ensuring consistent energy supply regardless of fluctuations in the grid. Plus, the inverter’s intelligent power management maximizes efficiency, helping you reduce utility costs while tapping into renewable energy sources.
Cooling Technology That Enhances Longevity
The liquid cooling system in this cabinet is engineered for optimal heat dissipation. Unlike traditional systems, the liquid cooling mechanism keeps the battery cells at ideal operating temperatures, extending their lifespan and enhancing overall reliability. This innovative technology minimizes maintenance while ensuring the system performs flawlessly in a variety of climates.
Why Choose This Energy Storage Cabinet?
With a strong focus on durability, performance, and sustainability, the 105kW 232kWh storage cabinet with 280Ah batteries and liquid cooling is a game-changer in energy storage. Whether for residential use, business applications, or off-grid needs, it’s designed to meet demanding energy requirements with ease and efficiency. Boost your energy productivity while contributing toward a greener future.
| Model No. | JS-Y232 |
| Grid Side (Grid-connected/Off-grid) | |
| Rated Grid Voltage | AC380V(-15%~+10%) |
| Rated Output Frequency | 50Hz/60Hz(士5Hz) |
| AC Connection Method | Three-phase four-wire (with neutral line N) |
| Isolation Method | Isolation-free Grid Connection |
| Maximum Charge/Discharge Power | 110KW/AC (continuous), 120KW (1 min), 130KW (1 s) |
| Charge/Discharge Switching Time | Less than 10ms |
| Battery End Parameters | |
| Battery Type | Lithium Ion Battery (Lithium Iron Phosphate) |
| Rated Energy | 232.96KWh |
| Maximum Charge/Discharge Energy | DOD95% |
| Maximum Charge/Discharge Current | 220A |
| Rated Charge/Discharge Power | 105KW |
| Cycle Times | 6000 (100% charge and discharge, decay to 75%, 25°C) |
| System Efficiency/Function/Safety | |
| Maximum System Efficiency | 92% (comprehensive actual operating efficiency) |
| Maximum Charging Efficiency | ≥96% |
| Maximum Discharging Efficiency | ≥96% |
| Main System Functions | Anti-reverse flow protection, high and low voltage ride-through, grid-connected/islanding operation, islanding protection, load tracking, demand control, remote scheduling and monitoring OTA |
| System Safety Protection | Over-voltage, under-voltage, short circuit, overload, overcurrent, over-temperature, lightning protection, leakage, insulation detection, cabinet + PACK level immersion fire protection design, etc. |
| Overall Technical Parameters | |
| Weight | 1400x1250x2000mm |
| Maximum Charging Efficiency | <2500kg |
| Operating Altitude | 3000m (100% AC output) |
| Cooling Method | Second-generation liquid cooling or immersion liquid cooling |
| Protection Level | IP65 |
