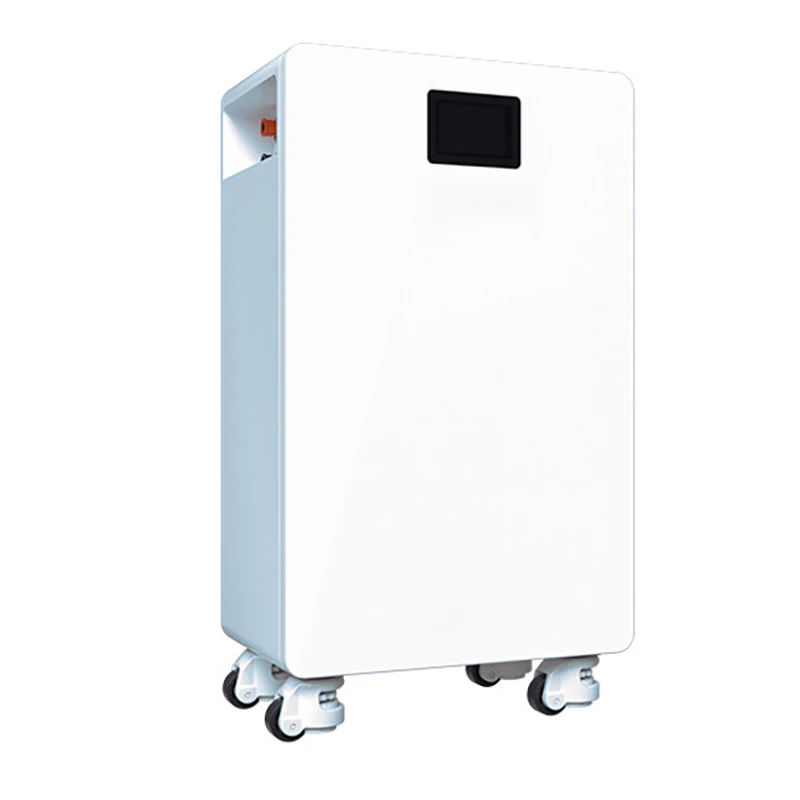

Reliable Energy Storage for Your Home
Introducing the 10kWh floor-mounted home energy storage system, designed for homeowners who prioritize efficiency and sustainability. Whether you’re aiming to reduce your reliance on the grid or seeking to maximize the benefits of solar panels and hybrid inverters, this energy storage solution has you covered. With its advanced technology and high energy capacity, it helps you store and utilize clean energy when you need it most, ensuring uninterrupted power supply at home.
Seamless Compatibility with Solar Panels and Hybrid Inverters
The hybrid inverter compatibility ensures smooth conversion and management of stored energy, offering consistent performance across various applications. This makes it the ideal choice for green energy enthusiasts looking to make the most of their investment in clean technologies.
Floor-Mounted Design for Versatile Installation
The system boasts a compact yet robust floor-mounted design, making it suitable for installation in a variety of indoor and outdoor spaces. Its sturdy construction ensures durability, even in challenging environments, while the sleek and modern design allows it to blend seamlessly into your home setup. Whether in your utility room, garage, or basement, this energy storage unit is built to perform reliably while keeping your space organized and efficient.
The 10kWh floor-mounted home energy storage system is more than just a power backup solution; it’s a step toward energy independence and sustainable living. Perfect for both urban homes and rural setups, this system is tailor-made to meet the energy needs of modern households. Order yours today and take control of your energy future!
| Product Model | JS-100 |
| Technical Parameters | |
| Nominal Voltage | 51.2V |
| Rated Capacity | 200Ah@25°C |
| Battery Capacity | 10.24KWh |
| Charge Efficiency | 99.5%@ 0.2C |
| Discharge Efficiency | 96-99%@ 1C |
| Terminal Diameter | 200A Quick connector |
| Internal resistance (Fully charged, 25°C) | ≤50mΩ |
| Cycle life | 6000 times @ 0.2C 75%D.O.D |
| Nominal operating temperature | 25°C± 3°C (77°F± 5°F) |
| Maximum Parallel Machine | Parallel connection is less than or equal to 15 units |
| Protection Level | IP55 |
| Standard Charge Mode | 0.2CA Constant Current to 57V,then Constant Voltage 57V until the current drops to 0.02CA, before use, rest 30 minutes |
| Charge Current | 20A |
| Maximum Charge Current | 50A |
| Charge Cut off Voltage | 58.4V |
| Continuous Discharge Current | 150A |
| Maximum Pulse Current | 200A (<1S) |
|
Discharge Cut Off Voltage
|
40V |
|
Communicate Protocol (optional)
|
RS485/RS232/CAN
|
|
SOC (optional)
|
Screen/LED/PC Software
|
|
Application connection
|
string 1 parallel
|
|
Installation
|
Floor-standed
|
| Certificates | |
| Certificates & Test Reports
Compatible Inverter BrandsGROWATT, GOODWE, DEYE, MEGAREVO, SUNSYNK, SOLIS, AFORE, SRNE, VOLTRONIC POWER, MPPSOLAR, LUXPOWER TEK, INVT, VICTRON ENERGY, SOFAR SOLAR, CHISAGE ESS, SOLAX POWER, Sol-Ark, Hoymiles, Solplanet, Senergytec, Sungrow. |
IEC62619 (Cell ),CE(EMC, LVD),UN38 .3,MSDS |
