Cutting-Edge Battery Management System (BMS) Technology
At the heart of this solar battery energy storage system lies its state-of-the-art Battery Management System (BMS). This advanced BMS technology ensures the system operates at peak efficiency, safeguarding the battery from overcharging, overheating, and deep discharging. With real-time monitoring, intuitive controls, and fault detection, you’ll enjoy peace of mind knowing that safety and performance are top priorities. Ideal for homes seeking a long-lasting energy storage solution, this system is built to deliver consistent and reliable power over the years.

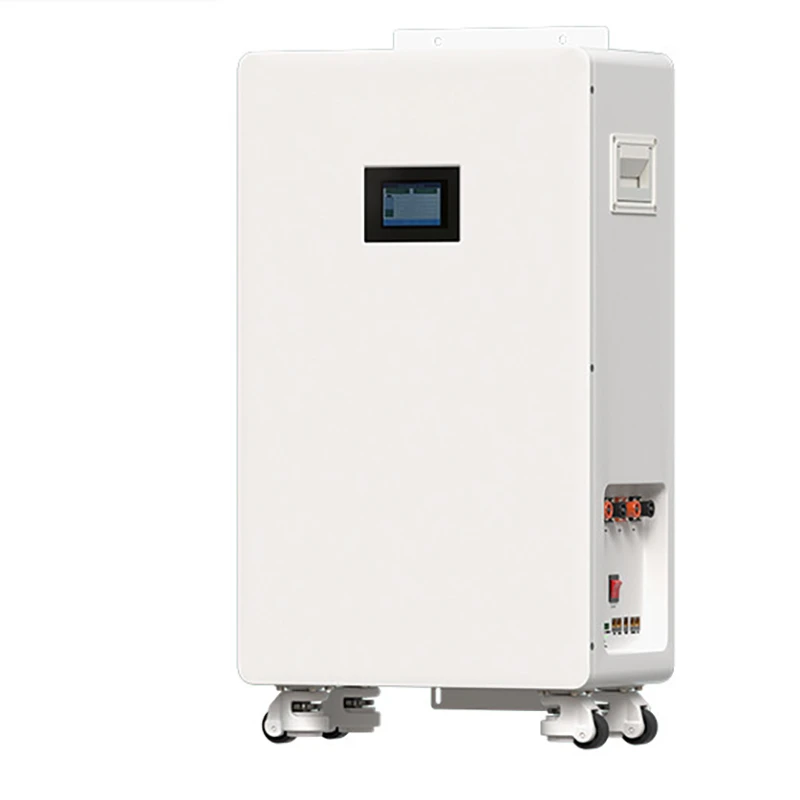

A User-Friendly, Floor-Mounted Design
The floor-mounted freestanding design of this solar power system offers exceptional flexibility and ease of installation. Whether it’s placed in your garage, basement, or utility room, its compact and minimalist design ensures it fits right in without taking up too much space. Unlike wall-mounted alternatives, this floor-standing unit is sturdy and low-maintenance, offering the convenience of placement while reducing the risk of installation errors. Perfect for homes of all sizes, it’s designed with the user in mind.
Why Choose the 15kWh Solar Battery Energy Storage System?
With a storage capacity of 15kWh, this system will keep your home powered through the night or during unexpected outages. Reduce your dependence on the grid, gain energy independence, and take advantage of solar power’s full potential with this robust energy storage system. Tailored for high performance and durability, it’s a cost-effective and environmentally-friendly investment in your home’s future.
Whether you’re already equipped with solar panels or planning to integrate renewable energy, the 15kWh Solar Battery Energy Storage System is your go-to solution for intelligent energy management. Power your home smarter, cleaner, and more efficiently with this top-tier solar power system.
If you want to cut down on electricity bills or reducing your carbon footprint, this advanced solar battery system is the perfect choice for eco-conscious homeowners.
| Product Model | JS-150 |
| Technical Parameters | |
| Nominal Voltage | 51.2V |
| Rated Capacity | 280Ah@25°C |
| Battery Capacity | 14.33KWh |
| Charge Efficiency | 99.5%@ 0.2C |
| Discharge Efficiency | 96-99%@ 1C |
| Terminal Diameter | 250A Quick connector |
| Internal resistance (Fully charged, 25°C) | ≤200mΩ |
| Maximum Parallel Machine | Parallel connection is less than or equal to 15 units |
| Cycling Times | 6000 times @ 0.2C 75%D.O.D |
| Protection Level | IP55 |
| Nominal operating temperature | 25°C± 3°C (77°F± 5°F) |
| Charging limit voltage | 58.4V |
| Standard Charge Mode | 0.2CA Constant Current to 57V,then Constant Voltage 57V until the current drops to 0.02CA, before use, rest 30 minutes |
| Charge Current | 20A |
| Maximum Charge Current | 50A |
| Continuous Discharge Current | 200A |
| Maximum Pulse Current | 250A (<1S) |
|
Discharge Cut Off Voltage
|
40V |
|
Communicate Protocol (optional)
|
RS485/RS232/CAN
|
|
SOC (optional)
|
Screen/LED/PC Software
|
|
Application connection
|
string 1 parallel
|
|
Installation
|
Floor-standed
|
| Certificates & Test Reports IEC62619 (Cell ),CE(EMC, LVD),CB,UN38 .3,MSDS
Packaging Details Wooden Package & Carton UN Boxes Production Capability 3000 Units monthly Compatible Inverter BrandsGROWATT, GOODWE, DEYE, MEGAREVO, SUNSYNK, SOLIS, AFORE, SRNE, VOLTRONIC POWER, MPPSOLAR, LUXPOWER TEK, INVT, VICTRON ENERGY, SOFAR SOLAR, CHISAGE ESS, SOLAX POWER, Sol-Ark, Hoymiles, Solplanet, Senergytec, Sungrow. |
|
