Powerful Energy Storage Solution

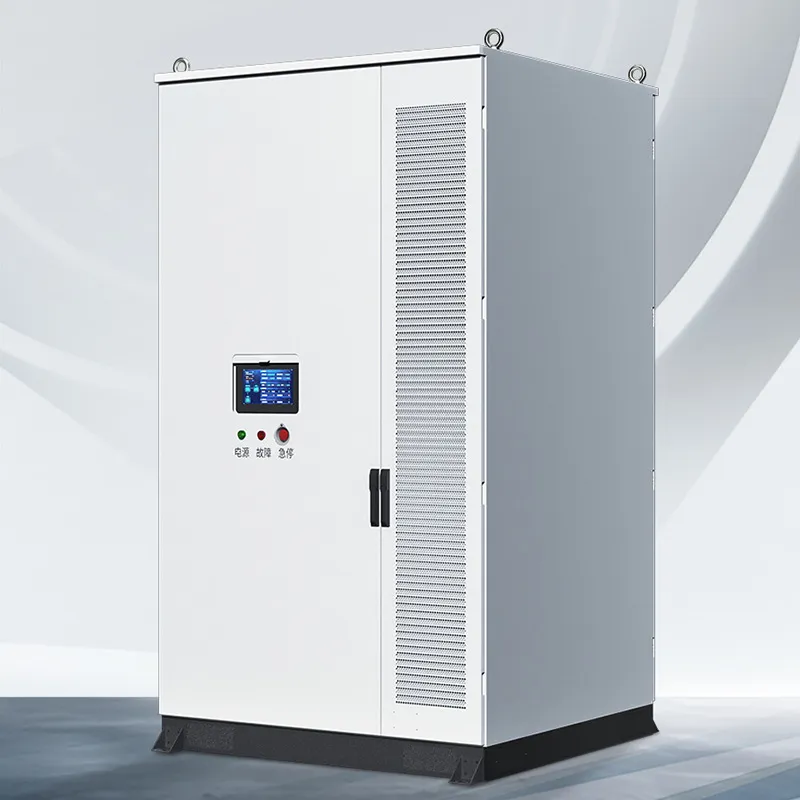

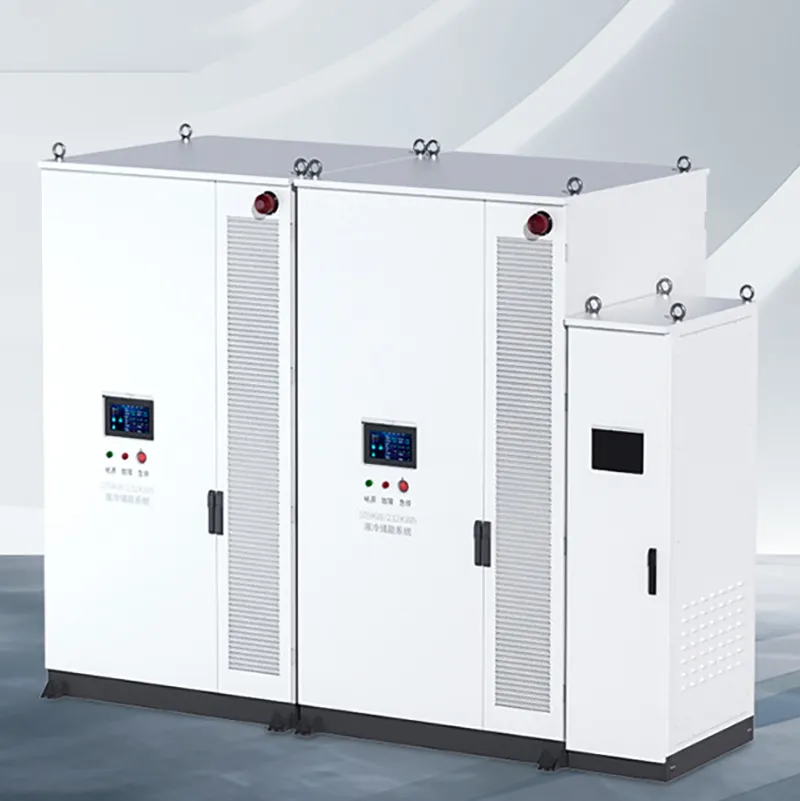

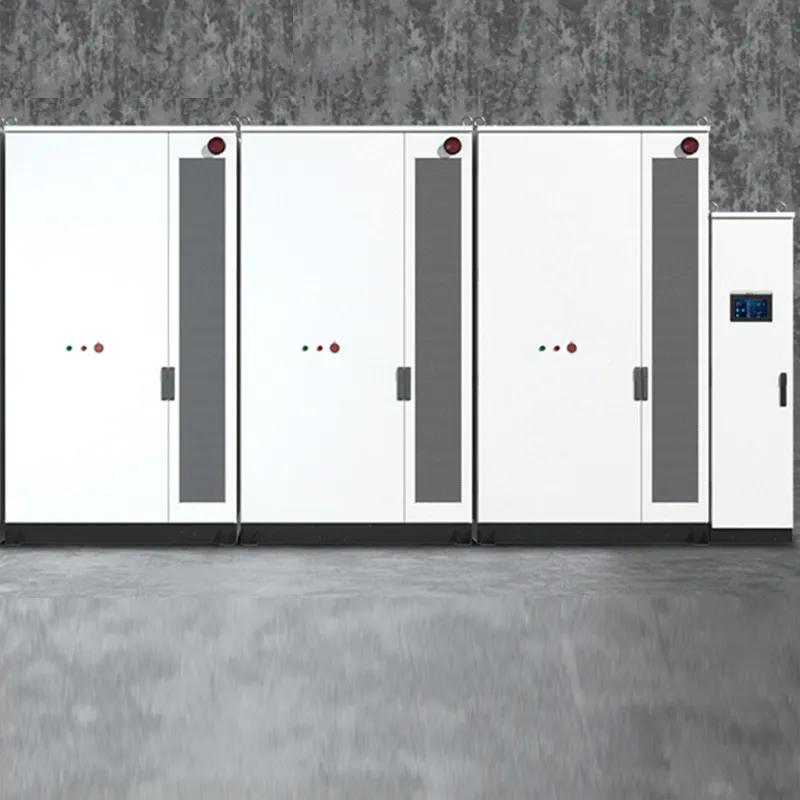

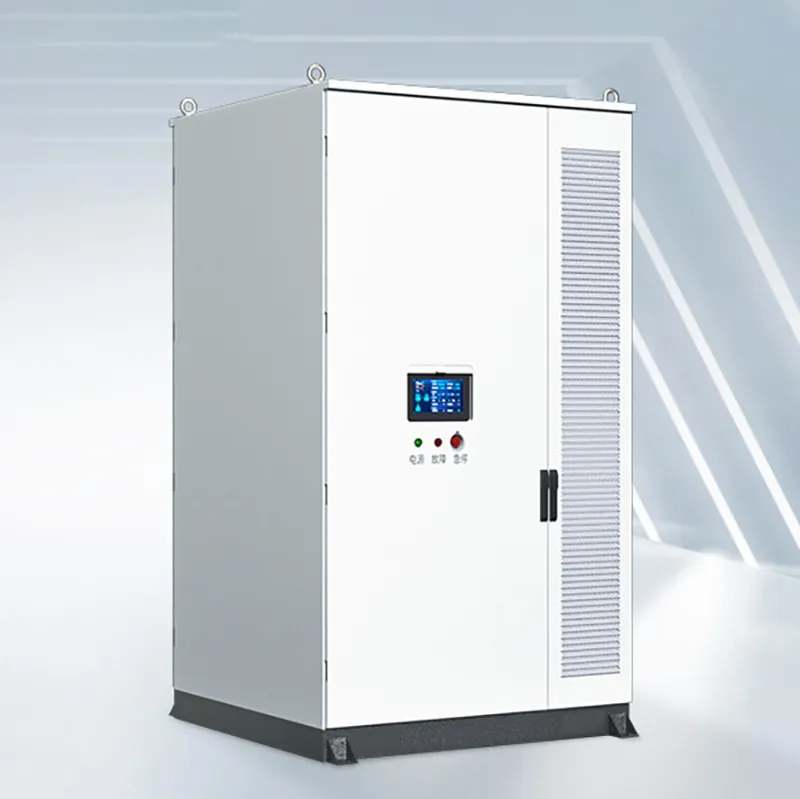

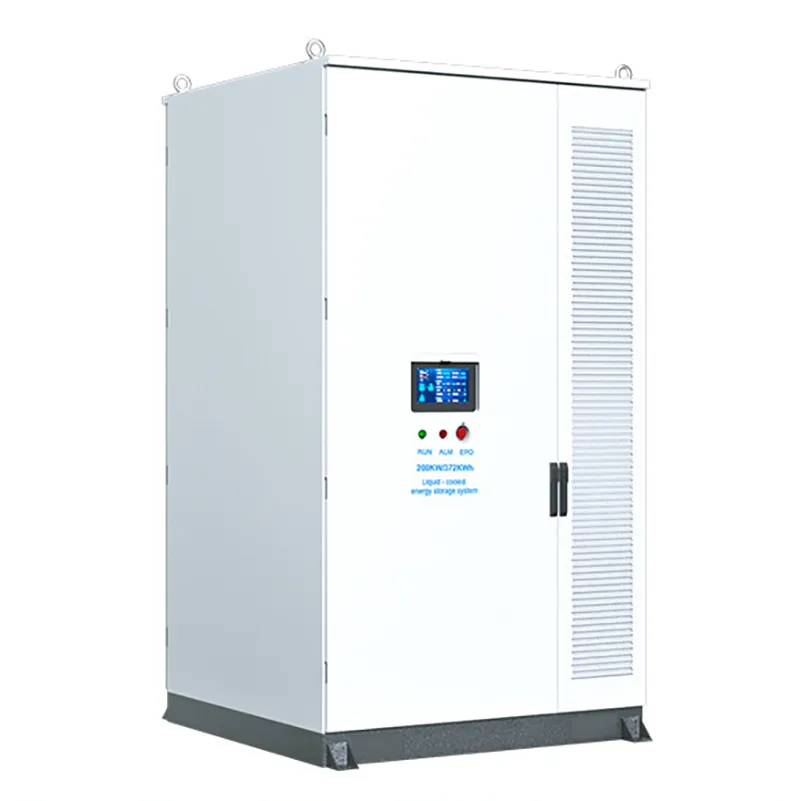

Introducing the 200kW 372kWh Solar Energy Storage Cabinet – a state-of-the-art system designed to meet all your energy storage needs. Equipped with high-capacity 280Ah battery cells and liquid cooling technology, this Energy Storage System (ESS) ensures peak efficiency and reliability, even in demanding environments. Whether you’re optimizing energy use for residential, commercial, or industrial applications, this system delivers the performance you need.
Advanced Features for Maximum Efficiency
Built with cutting-edge technology, this solar energy storage cabinet includes a seamless Static Transfer Switch (STS) and a built-in inverter for hassle-free operation. The STS guarantees uninterrupted power supply by automatically switching between energy sources, while the inverter converts stored energy into usable electricity. The liquid cooling system further ensures your battery cells maintain optimal temperature, extending their lifespan and performance. With a capacity of 200kW and a storage capability of 372kWh, this solution is perfect for users looking to harness solar power for sustainable energy use.
Reliable and Versatile Applications
This energy storage cabinet is tailor-made for diverse applications, including grid balancing, peak shaving, and off-grid setups. Its robust design ensures long-term durability, making it an ideal investment for businesses seeking to reduce energy costs and carbon footprints. With easy integration into solar systems, smart monitoring capabilities, and scalable configuration, the 200kW Solar Energy Storage Cabinet brings reliability and environmental impact reduction to your doorstep.
Why Choose Our Solar Energy Storage Cabinet?
By choosing this 200kW 372kWh Energy Storage System, you’re investing in advanced energy technology that emphasizes performance, efficiency, and sustainability. Maximize your energy savings and enjoy uninterrupted power with a system designed to adapt to your needs. Whether you’re enhancing renewable energy consumption or ensuring backup power, this cabinet is the future of clean and reliable energy.
| Model No. | JS-372 |
| Grid Side (Grid-connected/Off-grid) | |
| Rated Grid Voltage | AC690V(-15%~+15%) |
| Rated Output Frequency | 50Hz/60Hz(士5Hz) |
| AC Connection Method | Three-phase, three-wire (with neutral line N) |
| Isolation Method | Isolation-free Grid Connection |
| Maximum Charge/Discharge Power | 236.5KW/AC (10 minutes), 258KW (1 minutes) |
| Charge/Discharge Switching Time | Less than 10ms |
| Battery End Parameters | |
| Battery Type | Lithium Ion Battery (Lithium Iron Phosphate) |
| Rated Energy | 372KWh |
| Maximum Charge/Discharge Energy | DOD95% |
| Maximum Charge/Discharge Current | 180A |
| Rated Charge/Discharge Power | 200KW |
| Cycle Times | 6000 (100% charge and discharge, decay to 75%, 25°C) |
| System Efficiency/Function/Safety | |
| Maximum System Efficiency | 90% (comprehensive actual operating efficiency) |
| Maximum Charging Efficiency | ≥92,5% |
| Maximum Discharging Efficiency | ≥92.5% |
| Main System Functions | Anti-reverse flow protection, high and low voltage ride-through, grid-connected/islanding operation, islanding protection, load tracking,demand control, remote scheduling and monitoring OTA |
| System Safety Protection | Over-voltage, under-voltage, short circuit, overload, overcurrent, over-temperature, lightning protection, leakage, insulation detection, cabinet + PACK level immersion fire protection design, etc. |
| Overall Technical Parameters | |
| BMS Balanced Mode | Active Equalization |
| Operating Temperature | -30℃~+55℃ |
| Operating Altitude | ≤3000m(100% AC output) |
| Cooling Method | Second-generation liquid cooling or immersion liquid cooling |
| Protection Level | IP65 |
| Fire Fighting System | Perfluorohexone, water spray system |
| Cabinet Material | Steel painted |
| Weight | <3000kg |
| Dimensions(W/D/H) | 1400x1396x2520mm |
| Certification | |
| Certificates & Test Reports | GB/T36276,GB/T34131 |
