Floor-mounted Solar Batteries

LiFePO4 battery pack buitl-in BMS 10kwh 15kwh 20kwh 30kwh 51.2V 200ah to 600Ah 10KW output inverter monitor solar ESS WiFi 2

High capacity LiFePO4 solar battery pack with built-in BMS, 51.2V, 200Ah–600Ah, 10–30kWh storage, and 10kW inverter output. Smart WiFi monitoring makes this all-in-one ESS safe, efficient, and ideal for home or commercial solar energy storage.

SKU: ESS2509282105 Category: Floor-mounted Solar Batteries Tag: LiFePO4 battery pack

Unmatched Energy Storage with Cutting-Edge Technology

Take your energy storage to the next level with the revolutionary LiFePO4 Battery Pack featuring built-in BMS (Battery Management System). Designed to deliver performance, reliability, and efficiency, this battery pack is perfect for solar energy systems and backup power solutions. Whether you require 10KWh or 30KWh capacity, with voltages of 51.2V ranging from 200Ah to 600Ah, this product has you covered for all your energy needs.

Powerful Features That Set It Apart

Harness the strength of advanced technology with the 10KW output inverter integrated into this system. The built-in BMS protects the battery against overcharging, over-discharging, and short circuits, ensuring maximum safety and longevity. Thanks to its WiFi-enabled monitoring system, you can monitor real-time performance and efficiency directly from your device, making it easy to optimize energy usage depending on your requirements. The LiFePO4 Battery Pack stands out as an indispensable companion for residential, commercial, or industrial energy storage solutions.

Seamless Integration for Solar ESS Applications

This battery pack is specifically engineered for Solar Energy Storage Systems (ESS). The flexibility of a modular design enables you to stack multiple units for greater capacities, while its compatibility with solar inverters ensures seamless integration with your renewable energy source. Whether used for powering homes, small businesses, or off-grid systems, the LiFePO4 Battery Pack is a sustainable choice for dependable power.

Built for durability, efficiency, and ease of use, the LiFePO4 Battery Pack promises an eco-friendly energy solution without compromising on performance. Don’t miss out on the opportunity to future-proof your energy system with this remarkable product!

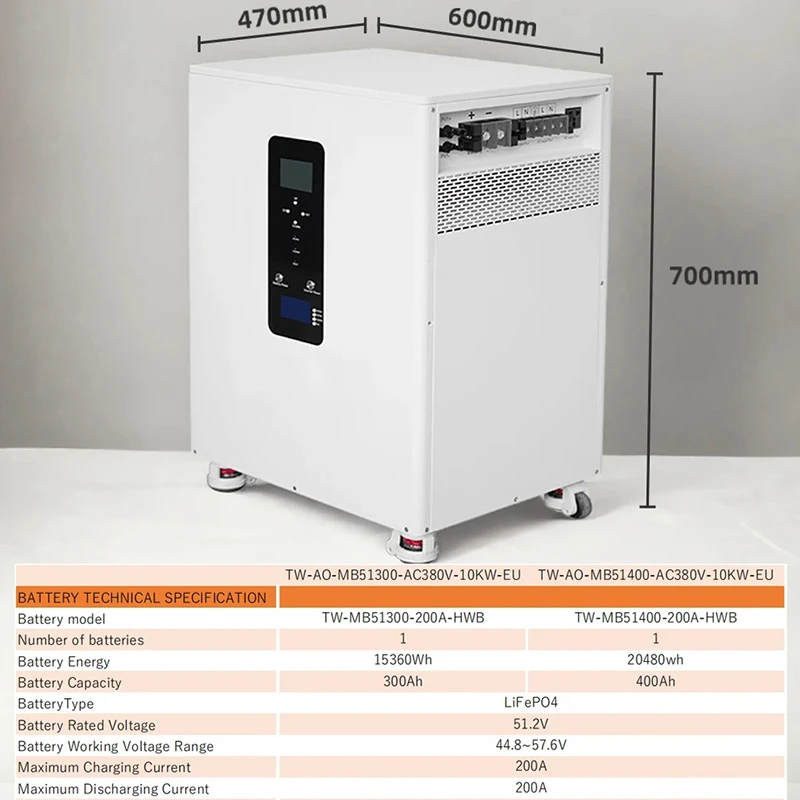

BATTERY TECHNICAL SPECIFICATION
Battery type	LiFePO4
Cell Grade	Grade A+
Nominal Voltage	51.2V
Cells Capacity& Combination	200AH, 16S2P	300AH, 16S1P		300AH, 16S1P
Nominal Capacity	400AH	300AH		600AH
Nominal Energy	20480Wh	15360Wh		30720Wh
Cycle life	6000+ @0.2C, 25℃, 80% DOD
Max. Continous Output Power	10000W
Max. Charge Voltage	57.6V
Discharge Cut-off Voltage	43.2V
Max. Continue Charge Current	200A
Max. Continous Discharge Current	200A
Max.Pulse Current	400A(<1S）
Charge Temperature	0℃~55℃
Discharge Temperature	-20℃~60℃
Fire Extinguisher	Yes(Temperature controlled )
Active Balancer	Yes
Communication Ports	RS485*3/CAN/RS232
Net weight	220 Kg	175 Kg		272 Kg
Gross weight	238 Kg	190Kg		299 Kg

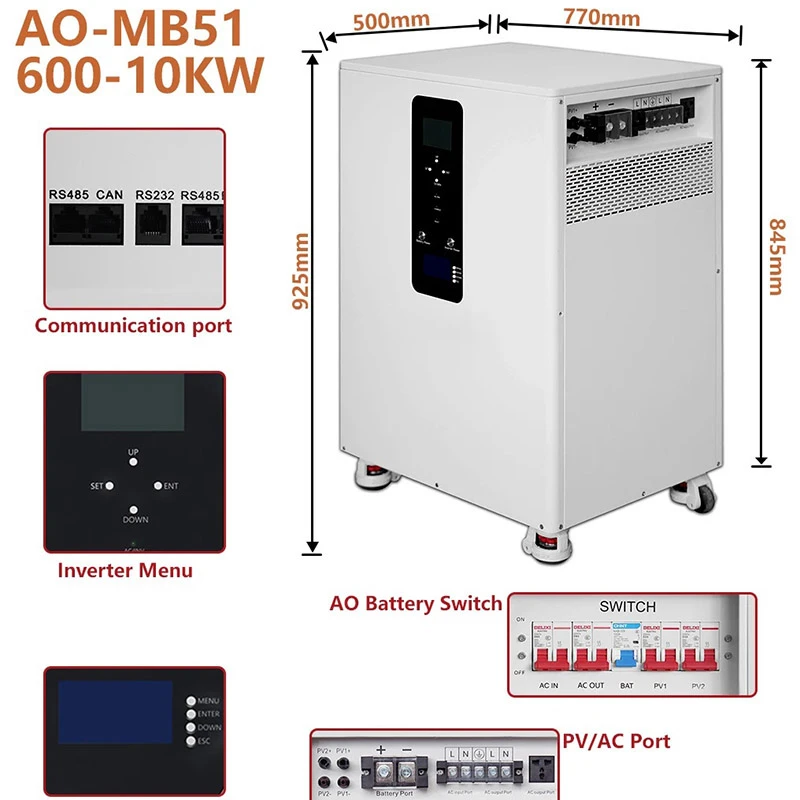

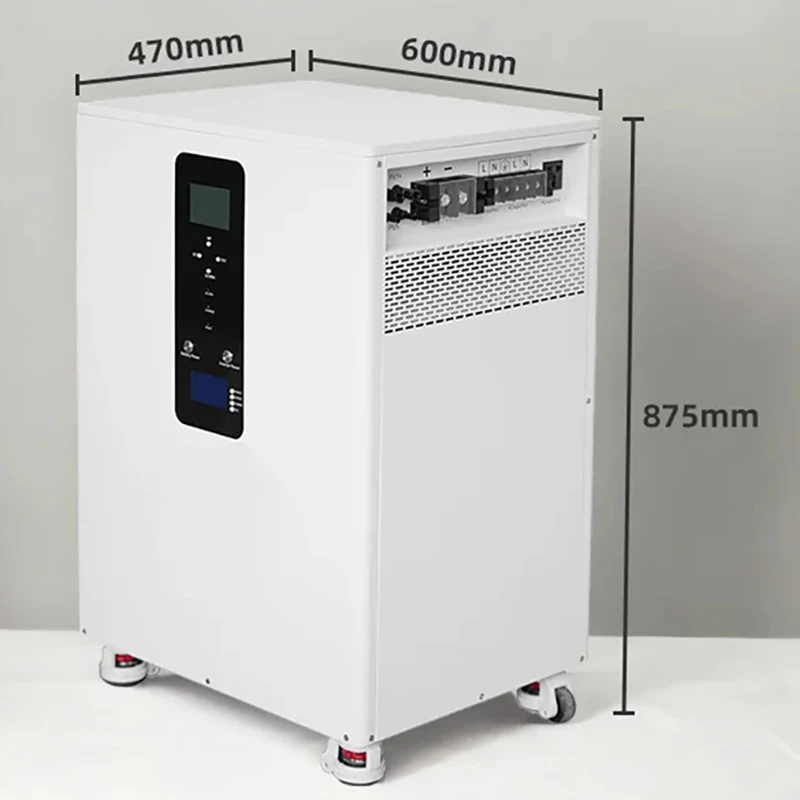

Dimensions(HLW)	800×600×470 mm	600660470 mm		770500845 mm

INVERTER TECHNICAL SPECIFICATION
INVERTER OUTPUT	EU Version		US/CA Version
Rated Output Power	10000W
Max. Peak Output Power	20000W
Rated Output Voltage	230Vac (L1/N/PE single-phase)		120/240Vac (L1/L2/N/PE split phase)
Load Capacity of Motors	6HP
Rated AC Frequency	50/60Hz
Waveform	Pure Sine Wave
Switch Time	10ms (typical)
Parallel Capability	6 units maximum(3 phases available)		Not available
PV INPUT
Num. of MPP Trackers	2
Max. PV array power	11000W
Max.input current	22A
Max.Voltage of Open Circuit	500Vdc
MPPT Voltage Range	125-425Vdc
AC INPUT	EU Version		US/CA Version
Input Voltage Range	90-270Vac		90-140Vac
Frequency Range	50/60Hz
Bypass Overload Current	32A		63A
GENERAL PARAMETER
MPPT Tracking Efficiency	99.90%
Battery Inverter Efficiency	>92.00%
Protection Degree	IP20，Indoor Only
Operating Temperature Range	-15~55℃,>45℃ derated		5~131℉，>113℉ derated
Noise	<60dB
Cooling Method	Internal Fan
Warranty	5 Years
Inverter Communication Interfaces	RS485 / CAN / USB / Dry contact
Battery Communication Interfaces	RS48/CAN/RS232
External Modules (Optional)	Wi-Fi / GPRS

Weight	300 lbs
Cells	Brand-new lithium iron phosphate LiFePO4 batteries
Cell Brands	EVE, WELION, CATL, Hithium, REPT, GOTION
Place of Origin	China
Certification	TUV, CB, UN38.3, MSDS, IEC62619, IEC62040, IEC61000, CEC, TISI
BMS Brand	PACE
