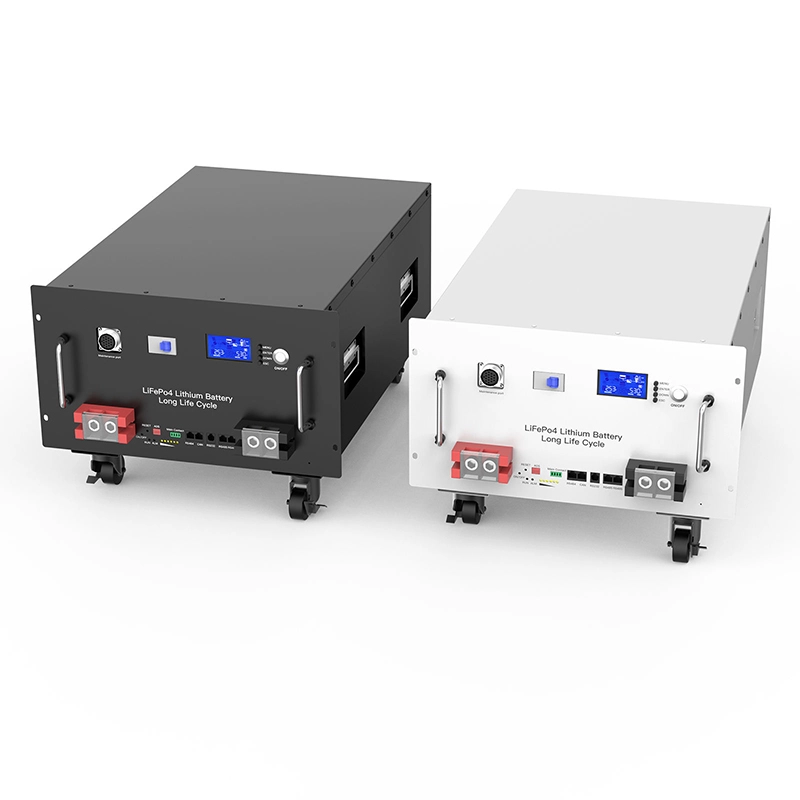

10kwh Lithium Battery 51.2V 200Ah for Home Solar Energy Storage Systems

Parameters for 51.2V 200Ah 10kwh Lithium Battery:

Model	JS-10KWH200AHGSR
Rated Capacity (KWH)	10.24KWH
Configuration	1P16S
Nominal Voltage	51.2V
Nominal Capacity(Cell)	200AH
Battery Type	Lifepo4 3.2V 200AH Grade A Cell
Anode Material	LFP
Working Voltage(V)	42V to 58.4V
Rated Charge/Discharge Current(A)	100A @25±2℃
Max. Charging Current(A)	200A @25±2℃
Max. Discharging Current(A)	200A @25±2℃
Working Temperature(Charge)	0℃ to 40℃
Working Temperature(Discharge)	-20℃ to 40℃
Humidity(%)	5% to 95%
Altitude Range(m)	0 to 3000m
Storage Temperature(in one month)	-10℃ to 35℃
Storage Temperature(in three months)	25±2℃
Storage Humidity	65%±20%RH
Lifecycle	8000 cycles @25℃, 50A charge and discharge current 80%DOD
Residual Capacity Loss	≤3% @25℃ 20%SOC
Communication interfaces	CAN & RS485 & RS232 & WIFI (optional)
Net Weight	85KG
Dimension	520x480x250mm
Warranty	5 years
Leadtime for standard goods	5 to 10 days (fastest in 3 days)
Leadtime for customized goods	3 to 4 weeks for customized orders

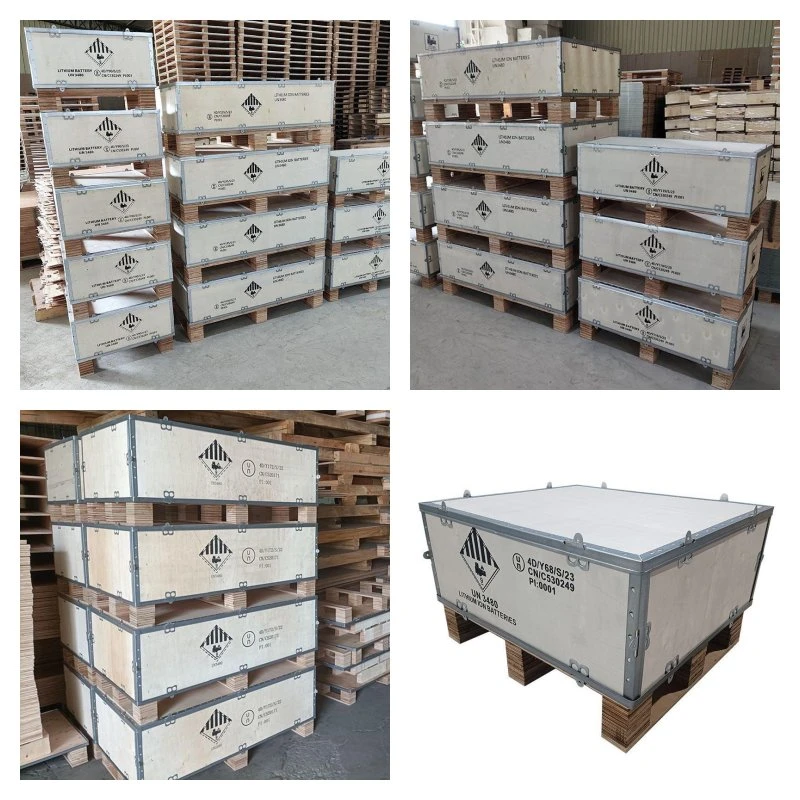

Standard packaging	UN Wooden box packing (4D/Y190/S/25 CN/C530178)
After-sales service	Entire lifetime technical support

Features

 Solid 10.24kWh Solar Energy Storage

With a 51.2V 200Ah lithium cells configuration, this 10kWh lithium battery gives your home a good amount of stored solar power for daily electricity use, nighttime power, and backup electricity needs.

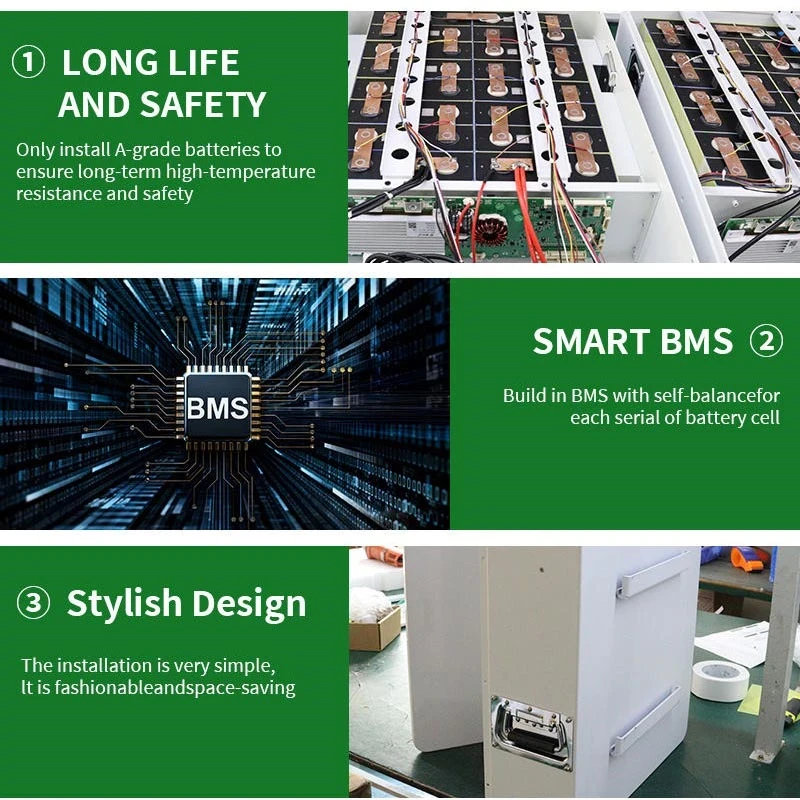

Grade A LiFePO4 Cells

Built with Grade A LiFePO4 cells, this lithium battery offers stable energy storage and reliable daily charging and discharging. It is a practical match for home solar systems.

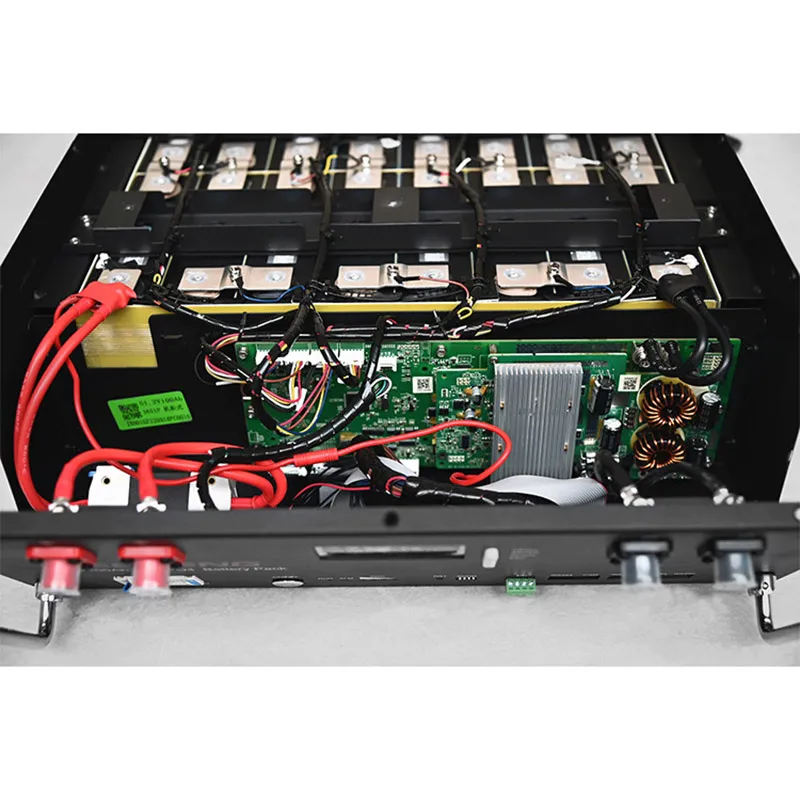

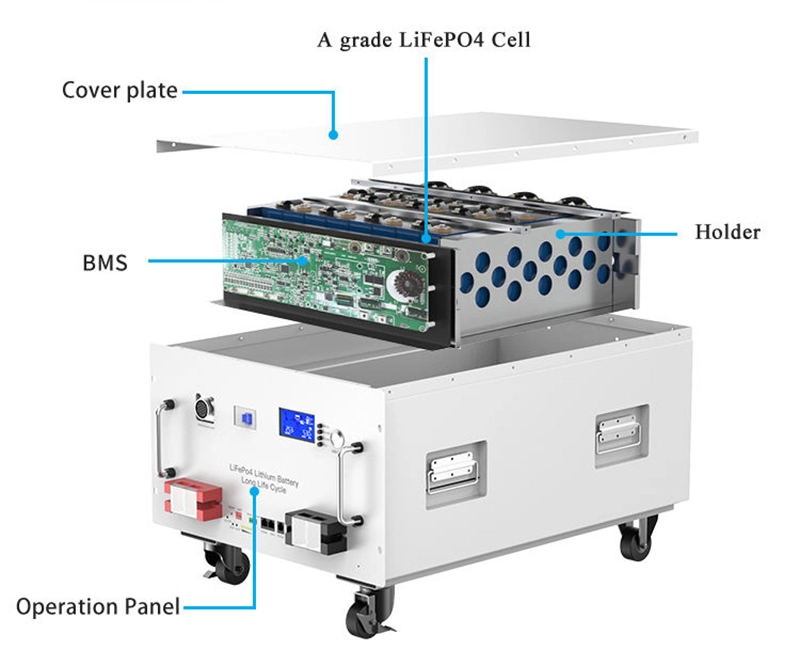

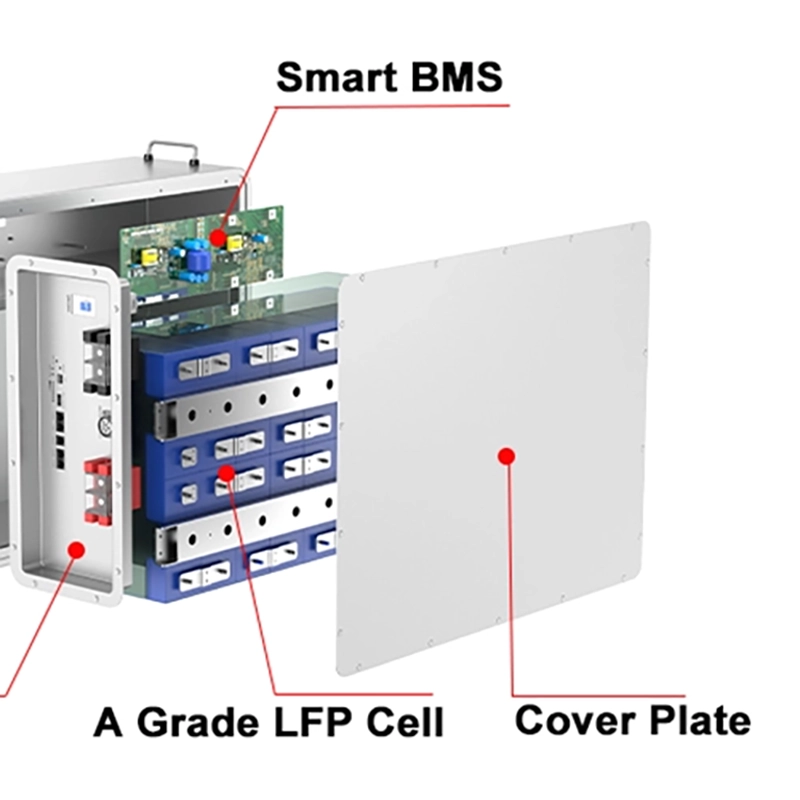

Smart BMS Protection

The built-in BMS keeps an eye on key battery conditions during operation, it helps to manage charging and discharging balance while providing safer and more stable performance, it also helps to extend the battery lifetime.

 Long Lasting Lifecycles

Nobody wants to replace a battery pack every few years. This model supports over 8000 lifecycles at 80% DOD under specified conditions.

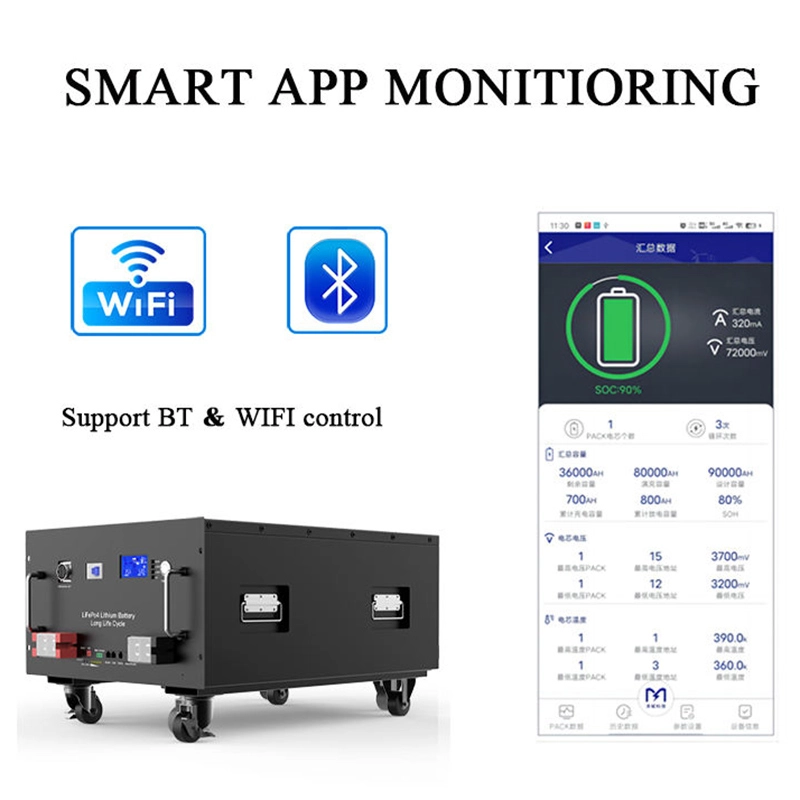

Easy Solar System Integration

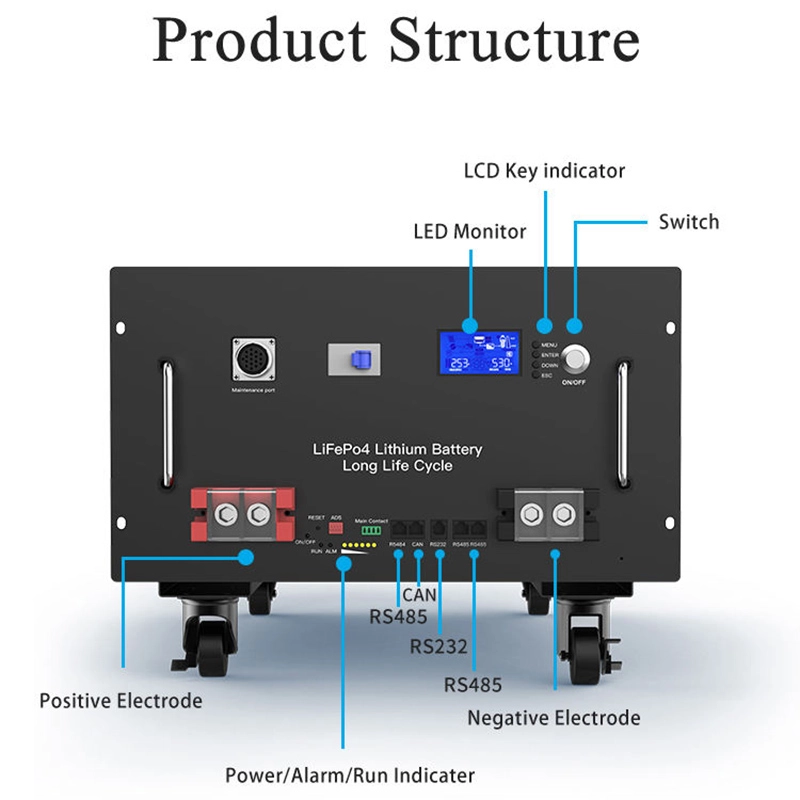

With CAN, RS485 and RS232 communication, plus optional WiFi module, this lithium battery is compatible with the most solar inverters and energy management systems for easier setup and monitoring.

Introduction of 51.2V 200Ah 10kwh Lithium Battery

Product Operation Guide

• Check the battery: Make sure the battery, terminals and cables are undamaged.
• Choose a location: Place it somewhere dry, safe and properly ventilated.
• Wiring complete solar storage system: Follow the wiring diagram and connect it to a compatible inverter.
• Set communication: Select the correct CAN, RS485 or WiFi settings if required.
• Power on: Start the battery and inverter in the recommended sequence.
• Check status: Confirm voltage, SOC and communication before starting normal operation.

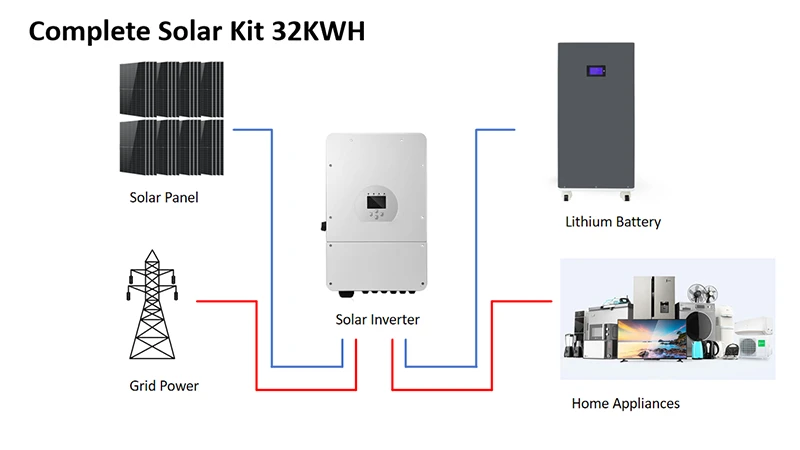

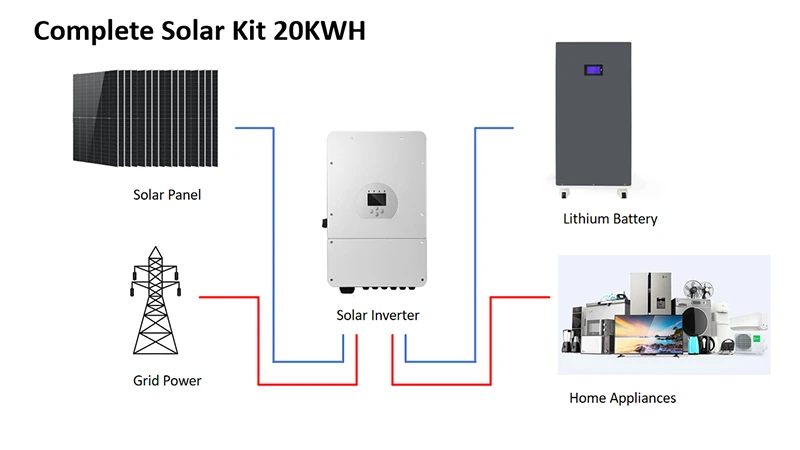

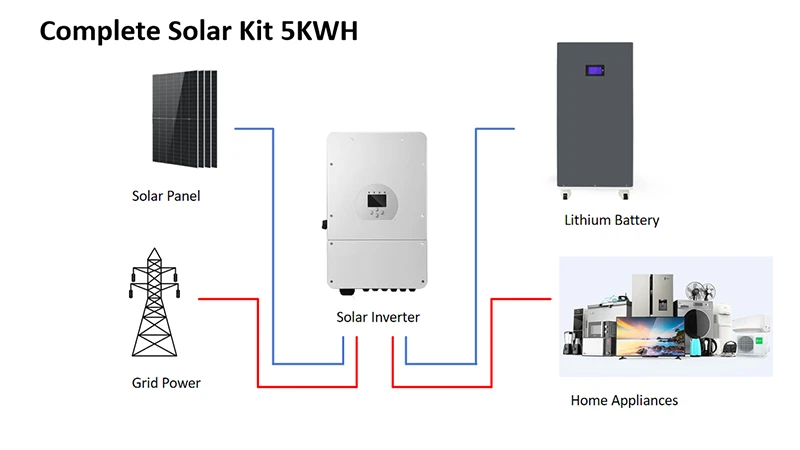

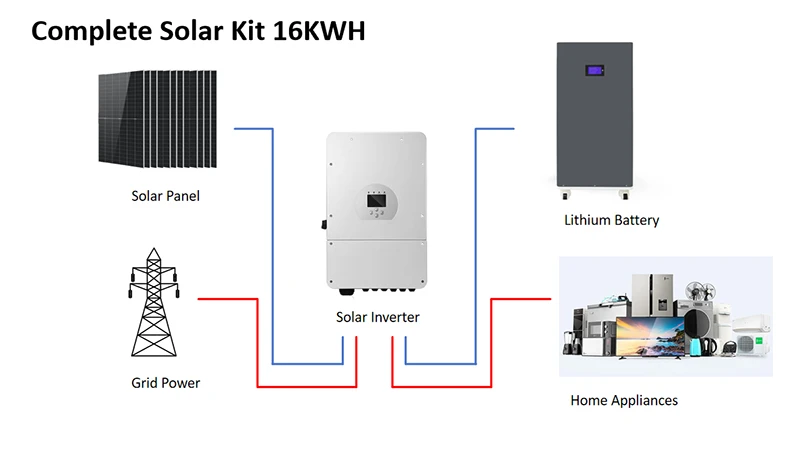

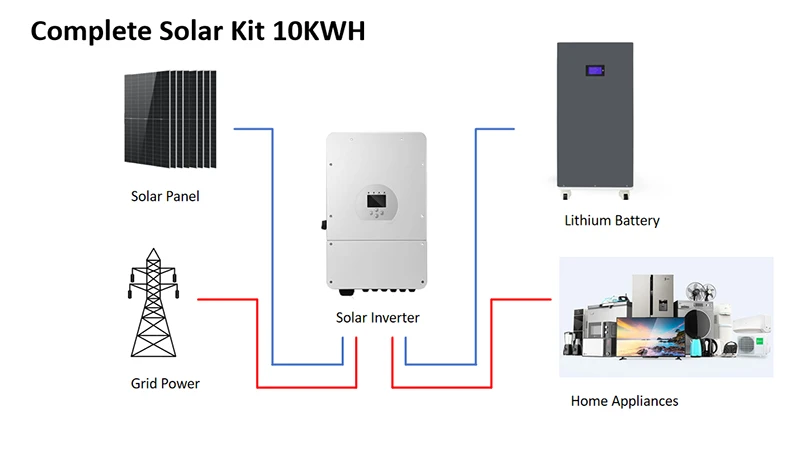

For a better understanding of how to wire the complete solar kit, please watch the video below.

1. Product Introduction

10kwh lithium battery provides 10.24kWh of energy storage for hybrid home solar storage systems, backup power and off-grid setups. Built with 51.2V 200Ah Grade A LiFePO4 cells and a smart BMS, it generates solar energy into electricity during the daytime and keeps usable power available when you need it at night.

2. Product Advantage

1. 10.24kWh Capacity with Grade A LiFePO4 Cells

This 10kWh lithium battery uses Grade A 3.2V 200Ah LiFePO4 cells, providing a solid energy source for everyday home power storage. With a rated capacity of 10.24kWh and 51.2V nominal voltage, it offers a practical balance between storage capacity, system size and household electricity needs.

2. Over 8000 Lifecycles

Nobody wants to replace the lithium battery every few years. This 51.2V solar battery supports more than 8000 lifecycles at 80% DOD under specified conditions. The LiFePO4 chemistry is well suited to daily charging and discharging. It is a dependable option for regular solar energy storage.

3. Strong Charging and Discharging Capability

This lithium battery pack has a 100ah rated charge and discharge current, while the maximum charging and discharging current reaches 200A at 25±2°C. With a working voltage range of 42V to 58.4V, it can provide stable electricity supply for compatible LV solar energy storage systems.

4. In Stock with Fast Delivery

Need batteries for a solar project without waiting long? This model is currently in stock, with standard orders normally shipped within 5 to 10 days and the fastest delivery time reaching around 3 days. Customized orders generally take 3 to 4 weeks, while UN wooden box packaging helps prepare the battery for international transportation.

3. Product Uses

• Home Solar Energy Storage: Generate electricity from rooftop solar panels during the daytime and use it later when power demand increases aat night.
• Home Backup Power: Keep essential appliances and electrical equipments running when the public grid power has unexpected power interruptions.
• Villa Energy Storage: The 10.24kWh capacity lithium battery provides a convenient energy reserve for villas and larger homes with higher daily electricity consumption.
• Off Grid Solar Systems: Combine the battery with compatible solar panels and an inverter to create an independent solar power system for remote locations.
• Small Business Backup: Suitable for shops, offices and small facilities that need additional electricity supply and backup power during grid outages.
• Solar Self-Consumption: Use stored photovoltaic energy at night instead of relying entirely on electricity from the grid.

4. Product Pain Points

Worried About Battery Installation?

Not everyone is familiar with lithium battery wiring and inverter settings. We provide an installation and operation manual, plus online technical assistance to help installers complete the setup correctly.

Concerned About Battery Quality?

This model uses 51.2v 100ah Grade A LiFePO4 cells and supports over 8000 cycles at 80% DOD under specified conditions. We also provide a 5-year warranty, giving distributors and end users extra peace of mind.

Not Sure If It Works with Your Inverter?

Different inverter brands can use different communication protocols. This battery supports CAN, RS485, RS232, and WiFi available as an option. Please send us the datasheet or manuel of current inverter, so that our technical team will be able to reconfirm the compatibility of lithium battery and inverter.

Need the Battery Quickly?

Solar projects often have tight installation schedules. This model is currently in stock, it takes from 5 to10 days for standard orders and the fastest delivery available in only 3 days.

What If Something Goes Wrong After Installation?

You don’t have to handle technical problems alone. We provide lifetime technical support for installation questions, communication settings, inverter matching and basic troubleshooting, helping installers and customers keep the system running smoothly.

JSBESS Company Information:

We are looking for agents, distributors, and BESS EPC projects for solar energy, for lithium battery packs, hybrid inverters, and solar energy storage systems. 1MWh 261KWh 161KWh 120KWh 100KWh 96KWh 62KWh 32KWh.

If you are searching for a reliable and high-quality BESS (Battery Energy Storage System) maker in China, Guangzhou JSBESS is your trusted partner. With over a decade of expertise in R&D, production, and global distribution, we provide advanced home, commercial, and industrial energy storage solutions that are safe, efficient, and fully certified to international standards. Our customizable systems support diverse applications from residential solar backup to large-scale grid integration, helping customers achieve energy independence and sustainability.

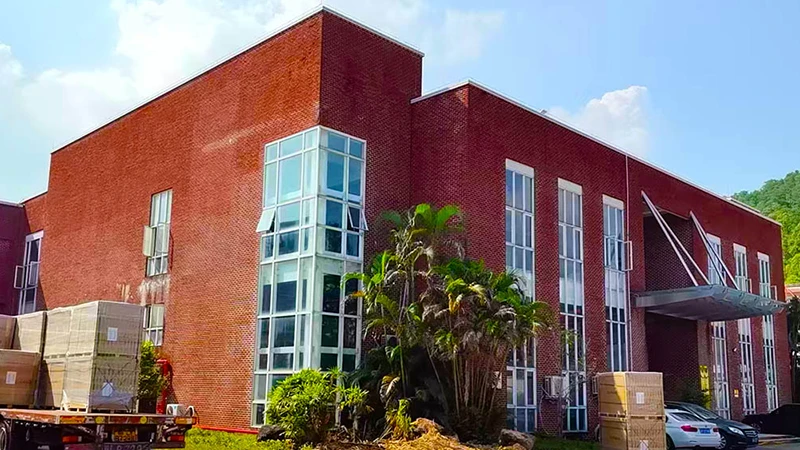

Guangzhou JSBESS is a leading solar energy storage system supplier in China. We are a trusted provider of advanced renewable energy solutions, integrating product R&D, design, manufacturing, and global sales. With over a decade of experience, we specialize in home energy storage systems (HESS), commercial and industrial energy storage (C&I BESS), and EV charging infrastructure, delivering safe, efficient, and sustainable power solutions to customers worldwide.

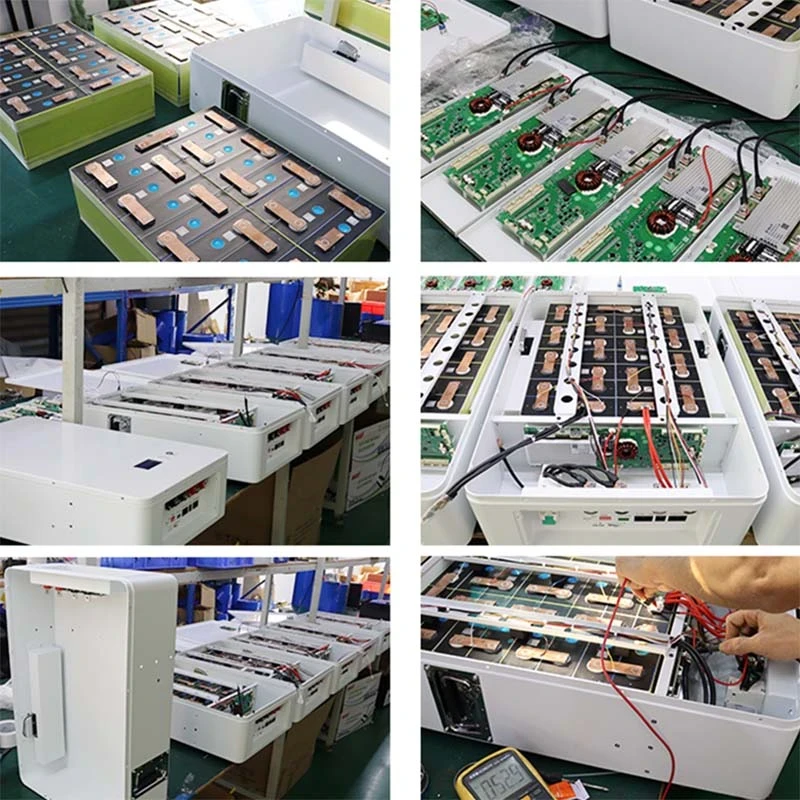

At JSBESS, technological innovation is at the core of our competitiveness. Our state-of-the-art, automated, dust-free workshop and internationally recognized testing laboratories allow us to produce more than 500,000 high-quality solar battery storage products annually.
