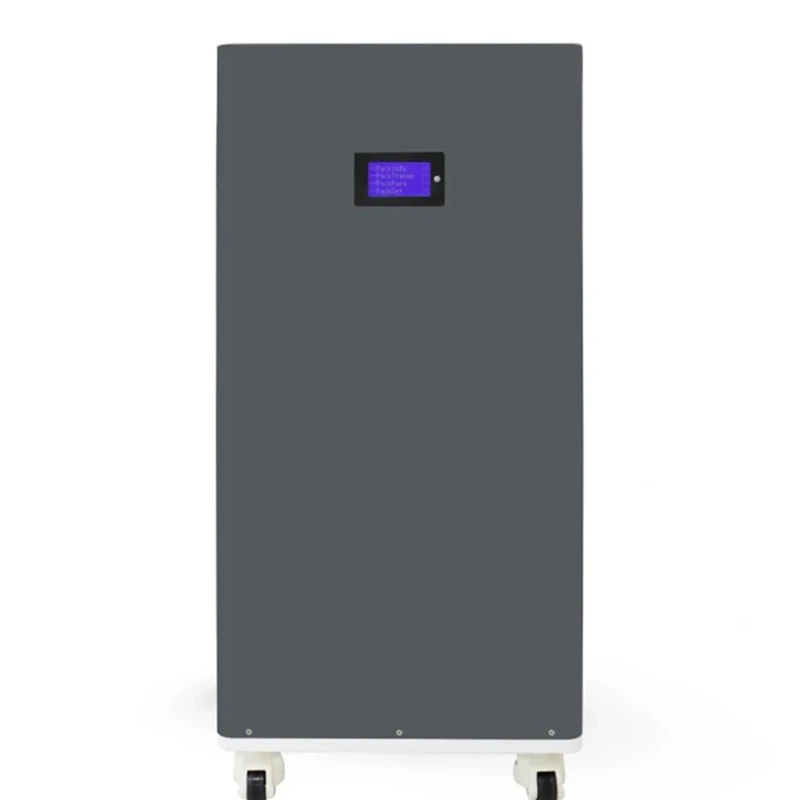

51.2V 314Ah 16kwh Lithium Battery for Home Solar Energy Storage Systems

Parameters for 51.2V 314Ah 16kwh Lithium Battery:

Model	JS-16KWH314AHKT
Rated Capacity (KWH)	16.076KWH
Configuration	1P16S
Nominal Voltage	51.2V
Nominal Capacity(Cell)	314AH
Battery Type	Lifepo4 3.2V 314AH Grade A Cell
Anode Material	LFP
Working Voltage(V)	42V to 58.4V
Rated Charge/Discharge Current(A)	200A @25±2℃
Max. Charging Current(A)	200A @25±2℃
Max. Discharging Current(A)	200A @25±2℃
Working Temperature(Charge)	0℃ to 40℃
Working Temperature(Discharge)	-20℃ to 40℃
Humidity(%)	5% to 95%
Altitude Range(m)	0 to 3000m
Storage Temperature(in one month)	-10℃ to 35℃
Storage Temperature(in three months)	25±2℃
Storage Humidity	65%±20%RH
Lifecycle	8000 cycles @25℃, 50A charge and discharge current 80%DOD
Residual Capacity Loss	≤3% @25℃ 20%SOC
Communication interfaces	CAN & RS485 & RS232
Net Weight	125KG
Dimension	880x480x420mm
Warranty	5 years
Leadtime for standard goods	5 to 10 days (fastest in 3 days)
Leadtime for customized goods	3 to 4 weeks for customized orders
Standard packaging	UN Wooden box packing (4D/Y190/S/25 CN/C530178)
After-sales service	Entire lifetime technical support

Features

Flexible Customization

Need your own brand or a specific setup? We accept OEM & ODM requirements and customized orders including logo branding, touchscreen, languages, colors, packaging, paralleled function, WIFI, Bluetooth, APP, and custom designed for BMS like PACE, JBD, TDT, JK and the other preferred brands, custom-made battery packs with preferred lithium cells like CATL, EVE, GOTION, CORNEX, HITHIUM, WELION, REPT, GREATPOWER, BYD…etc.

Easy Installation & Capacity Expansion

The battery supports floor-mounted installation and can be re-located when needed. Want more energy storage with a larger battery capacity later? You can connect multiple battery units in parallel, with support for up to 15 units, making system expansion much easier.

Smart Monitoring

Keep an eye on your battery without constantly checking it. Built-in WiFi and Bluetooth, together with the APP and BMS, let you monitor important battery information and system status remotely and more conveniently just on your mobile phone or computer.

Long Service Life

Nobody wants to replace a battery every few years. With up to 8,000 charge-discharge cycles at 80% DOD, the battery can last more than 10 years of long-term use under suitable operating conditions.

5-Year Warranty

We provide a 5-year warranty to give distributors, installers, EPC projects, and end users more confidence when choosing our lithium battery for solar energy storage projects.

Ready for Different Climates

With extreme climate tolerance, no matter the lithium battery is installed in a hot region like Dubai or relatively in a cold environment like Russia, it can operate properly within a working temperature range from –20°C to 40°C.

Built-In BMS Protection

Safety comes first. The advanced BMS provides over 20 protection and monitoring functions, helping manage charging, discharging, voltage, current and other key battery conditions during everyday operation.

High Round-Trip Efficiency

Less energy wasted means more usable power for your solar energy storage system. With round-trip efficiency of up to 99%, the battery can make better use of stored solar energy and electricity when charging and discharging.

Qualified Safety Certificates

For customers who care about compliance and transportation, the lithium battery can be supplied with relevant safety documentation and certifications, including UN38.3, MSDS, IEC 62619, IEC 62040, and IEC 61000, depending on the specific model and configuration.

Introduction of 51.2V 314Ah 16kwh Lithium Battery

Product Operation Guide

• Check the battery: Make sure the battery, cables and connectors are undamaged.
• Install safely: Place the battery in a suitable, dry and ventilated location.
• Connect the system: Connect the battery to the compatible inverter according to the manual.
• Check communication: Select the correct CAN/RS485 communication interfaces settings.
• Power on: Turn on the battery and inverter in the recommended sequence.
• Monitor: Check voltage, SOC and operating status before normal use.

For a better understanding of how to wire the complete solar kit, please watch the video below.

1. Product Introduction

The 51.2V 314Ah 16kWh lithium battery uses Grade A LiFePO4 cells and a smart BMS for safe, stable energy storage. With over 8000 cycles, flexible expansion and fast delivery, it is suitable for home solar and backup power systems. It stores daytime solar power and keep your home running when the sun goes down or the grid power goes out.

For larger energy storage needs, up to 15 battery units can be connected in parallel, allowing the storage capacity to grow as your system expands. The battery supports a 42V to 58.4V working voltage range, 200A charging and discharging current, and operating temperatures from -20°C to 40°C, making it the best choice for homes, villas, backup systems and solar projects.

With more than 8000 cycles at 80% DOD, this 16kWh lithium battery offers reliable service for long-term solar energy storage. The lithium battery operates from -20°C to 40°C and comes with a 5-year warranty plus lifetime technical support. With fast delivery for standard orders, it is one of the best choices for home solar energy storage, backup power and off-grid projects.

2. Product Advantage

1. Long Service Life of Over 8000 Lifetime

Made with Grade A 3.2V 314Ah LiFePO4 cells, this 51.2V 314Ah lithium battery supports over 8000 cycles at 80% DOD under specified test conditions. With proper installation and operation, it can provide years of dependable energy storage for homes, villas and solar backup systems.

2. Smart BMS and Multiple Communication Interfaces

The integrated BMS continuously manages safety of lithium battery during charging and discharging. CAN, RS485 and RS232 communication interfaces allow compatible connection with over 99% of inverters in the global market, making this 16kWh lithium battery easier to monitor and integrate into different solar storage setups.

3. Flexible Capacity Expansion with Parallel Connection

Need more storage later? No problem. Up to 15 battery units can be connected in parallel, allowing energy storage system capacity to grow as household electricity demand increases. Let this 51.2V battery become a practical choice for home ESS, backup power and larger PV energy storage projects.

4. Fast Delivery and Lifetime Technical Support

Standard products can usually be shipped within 5 to 10 days, with the fastest lead time reaching around 3 days when stock is available. This lithium battery comes in a UN approved wooden box packaging, includes a 5-year warranty, and is backed by lifetime technical support for troubleshooting.

3. Product Uses

• Home Solar Storage: Stores daytime solar power and supplies electricity when solar generation is low or unavailable.
• Villa Energy Storage: Provides a larger energy reserve for villas with higher daily electricity consumption.
• PV Backup Power: Keeps essential household loads running during grid interruptions and power outages.
• Off-Grid Solar Systems: Works with compatible solar inverters to create independent solar power systems in remote areas.
• Small Commercial Storage: Suitable for shops, offices and small facilities requiring additional backup power capacity.
• Solar Energy Projects: Can be connected in parallel for larger storage requirements and customized PV projects.

4. Product Pain Points

Installation Concerns

Some customers may be unfamiliar with lithium battery installation or inverter communication settings. We provide a paper installation and operation manual, wiring guidance and lifetime technical support to make setup easier.

Battery Compatibility

Different inverters may use different communication protocols. The battery supports CAN, RS485 and RS232 interfaces, helping installers connect it with compatible inverter and energy management systems.

Quality and Safety Concerns

Customers often want reliable battery cells and proper protection for long-term use. This model uses Grade A LiFePO4 cells and an integrated BMS, with protection and monitoring during normal charging and discharging.

Capacity Requirements

A single 16kWh lithium battery may not be enough for larger energy demands. Up to 15 units can be connected in parallel, giving customers more flexibility when expanding energy storage system capacity.

After-Sales Support

Technical questions can appear during installation or daily operation. We provide a 5-year warranty and lifetime technical support, helping distributors, installers and end users deal with technical issues more easily.
